Each site card on your Dashboard shows a live summary of the readings from all sensors inside it.
What each site card shows
At the top of every site card you will see:
- The average humidity (%RH) and temperature (°C) across all sensors in that site
- The number of units registered to the site
- A graph icon that takes you directly to that site in Climate Analytics

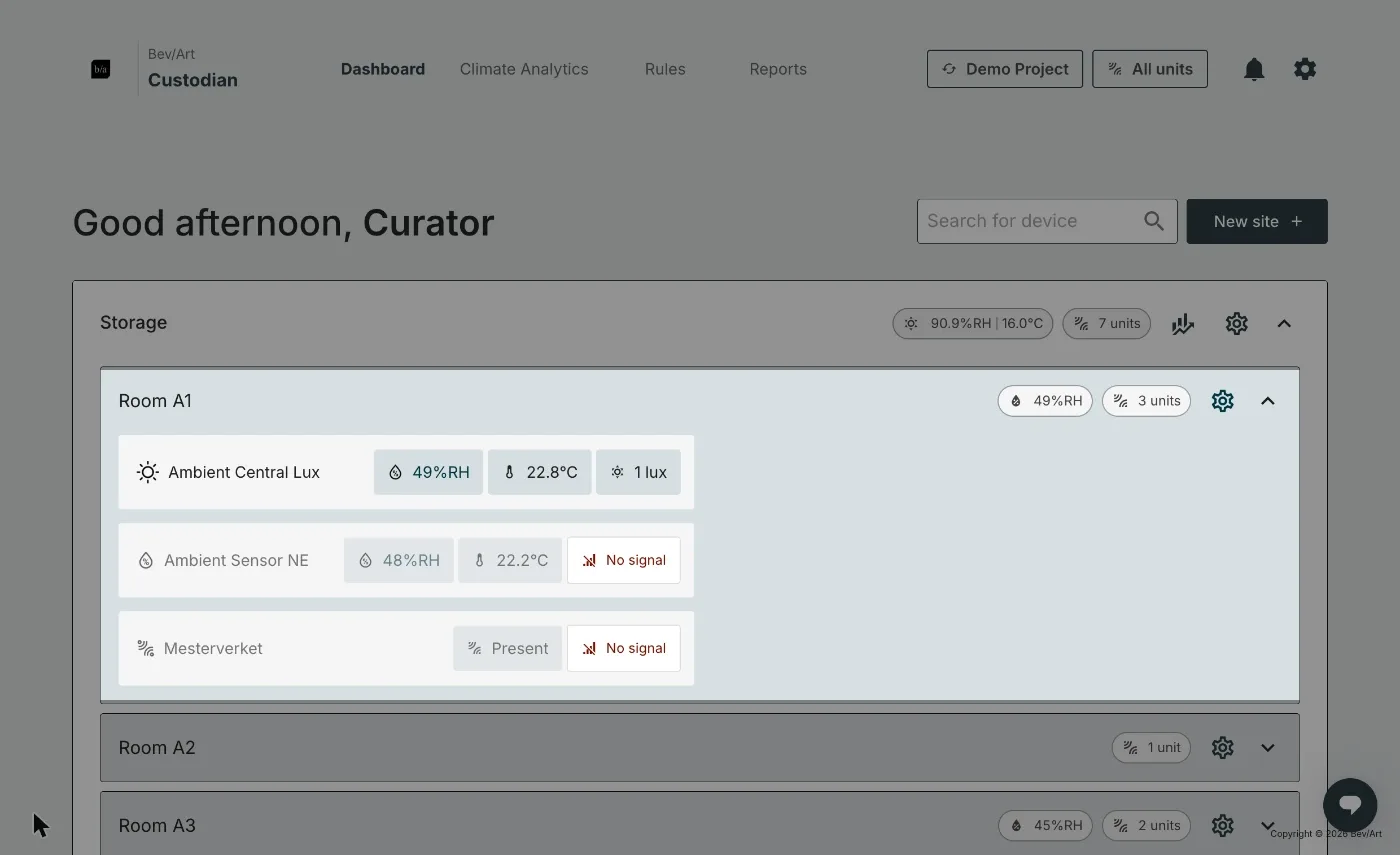

Expand a site card to see its rooms. Expand a room to see the individual sensors inside it and their current readings.
Sensor signal status
A sensor that is reporting normally shows its readings and nothing else. A badge appears when something is wrong or when the unit has no climate readings to give:
- No signal: the unit cannot reach the platform. Check that it is powered on and within range of a Cloud Connector.
- Present: a proximity sensor reporting that its object is in place. These units carry no humidity or temperature reading.
Table view in Climate Analytics puts the same information in a Connection column, where a healthy sensor reads Good signal.
If a sensor shows no readings at all, it is either offline or has not yet been assigned to a Cloud Connector.
