When you expand a rule on the Rules page, you will see two tabs: Units and Notification Rules.

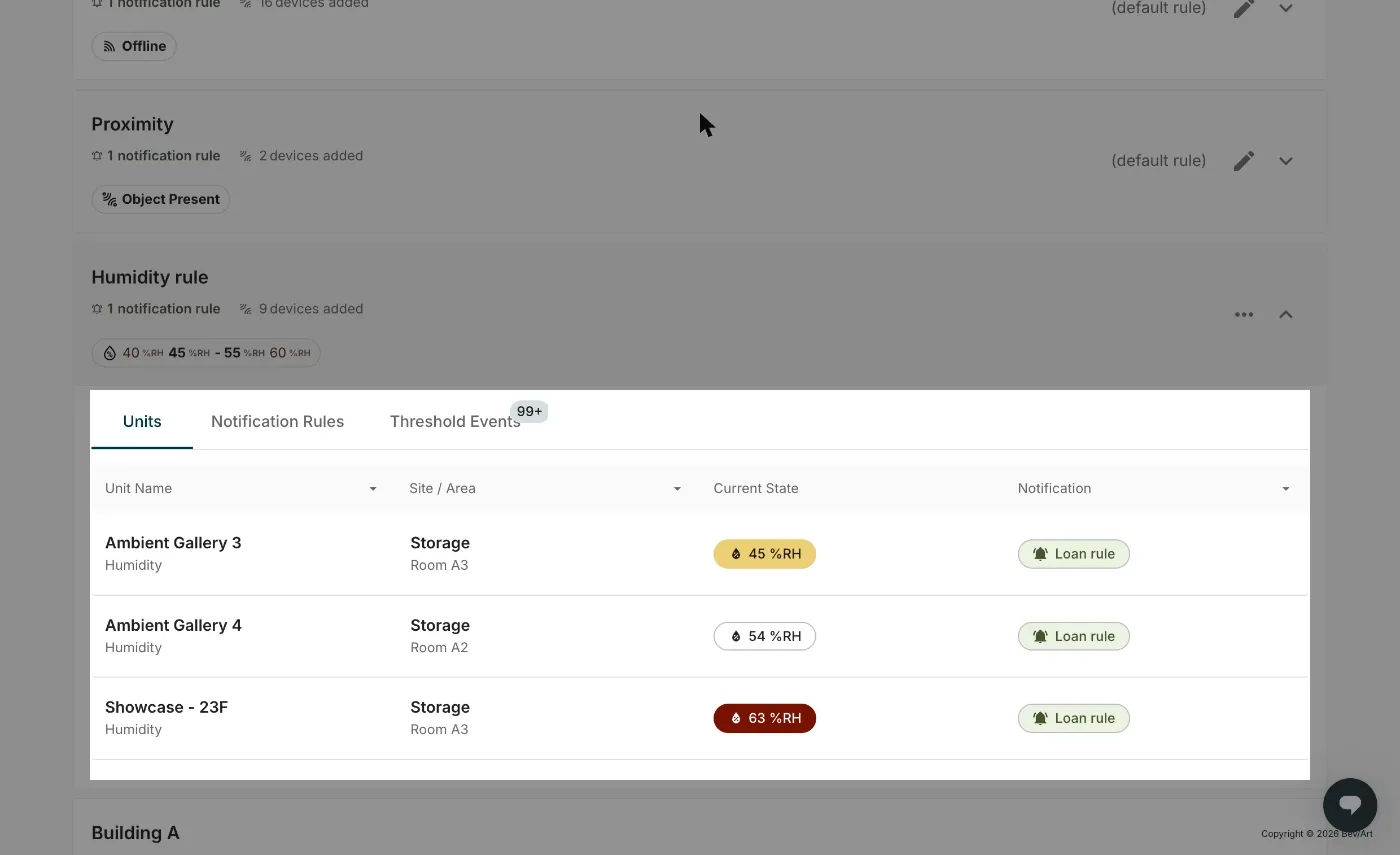

Units
The Units tab shows every sensor currently attached to this rule. For each sensor you can see:
- Unit Name: the name of the sensor and the type of reading it is monitoring under this rule
- Site / Area: where the sensor is located in your building
- Current State: the sensor's most recent reading, shown as a value badge. Yellow means the reading is in the warning zone between the optimal and critical bounds; red means it has breached a critical bound
- Notification: whether a notification rule is attached to this sensor. Sensors covered by a notification rule show a green Notification Rule badge; those without show No notification rules, which makes it easy to spot sensors that would not trigger an alert
Notification Rules
The Notification Rules tab lists the notification rules attached to this climate rule. Each one shows an Active status and its name.
From here you can:
- Edit Rule: reopen the notification setup wizard to change recipients, channels, schedule, thresholds, or target units
- Delete rule: permanently remove that notification rule
- + Create notification rule: add another notification rule to this climate rule
Expand a notification rule with the dropdown arrow to see its details.
